Quick selection chain width» 4 mm 5 mm 6 mm 6.5 mm 7.2mm mm 10.5 mm
ca. 4 mm
chain width

Spiral zipper No.0 endless long chain

Stock colours
Bobbins á 300 m
White
Silk white
Black
EcrĂş
Ivory
Hank á 200 m or roll á 50 m: colourless transparent
  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 4 mm
  • Single tape width ca. 12 mm
  • Synonyms: coil zipper long chain by-the-yard, zip fastener chain by the meter

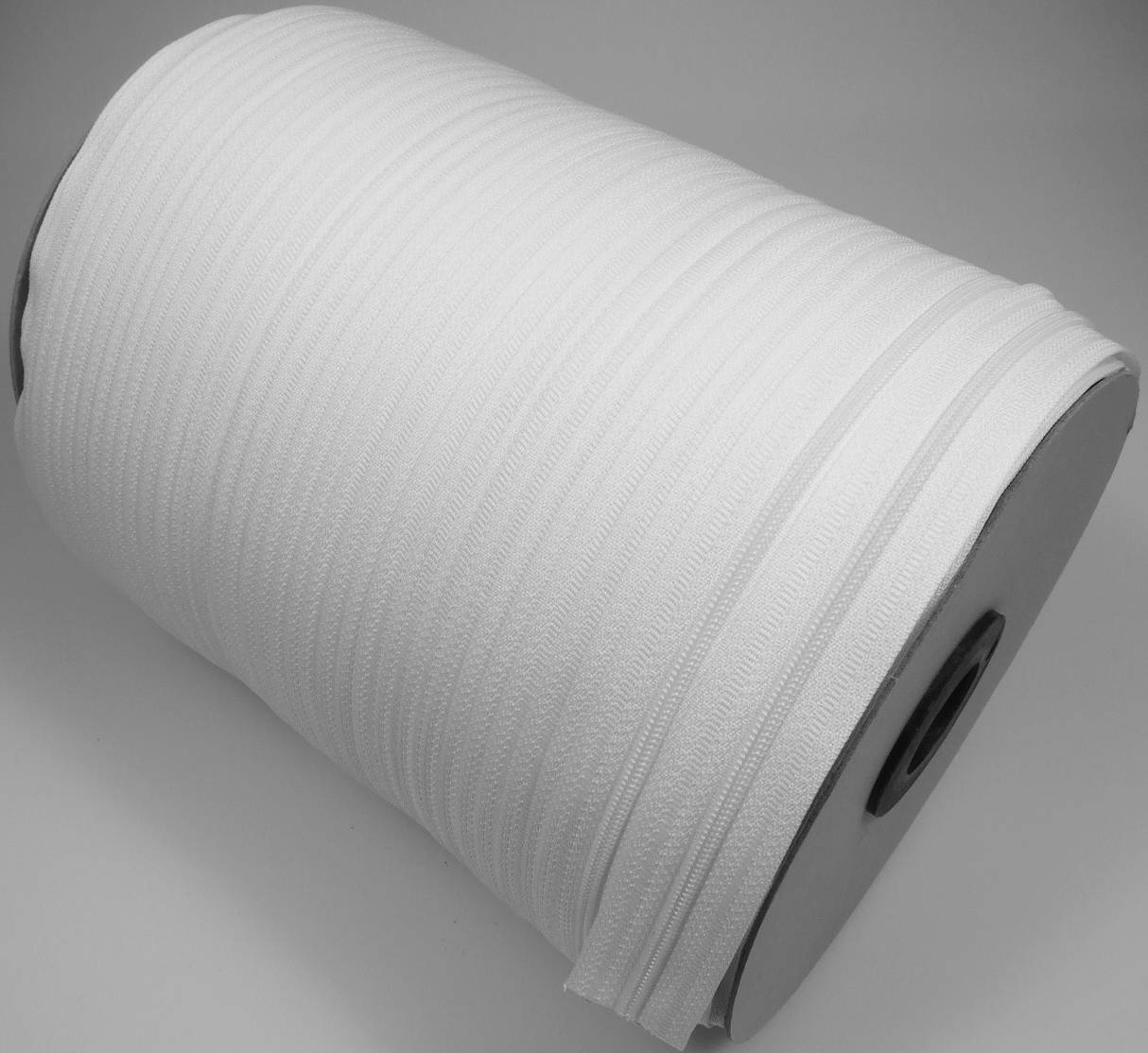

Spiral zipper long chain endless No.0 á 300 m bobbin Spiral zipper long chain endless No.0 transparent

Slider No.0

Material: Zamac

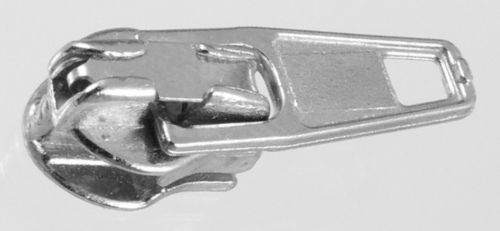

Slider No.0 autolock nickelAutomatic with standard pull tab: White, silky white, black, ecrĂş, ivory, nickel-plated

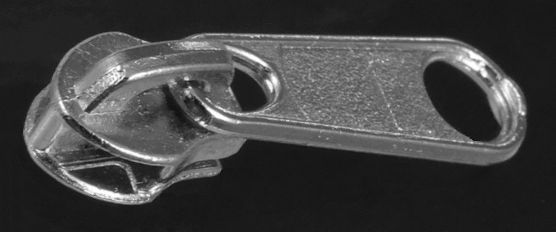

Slider No.0 nonlock, long pull tab, nickelNonlock with long pull tab: White, black, nickel-plated

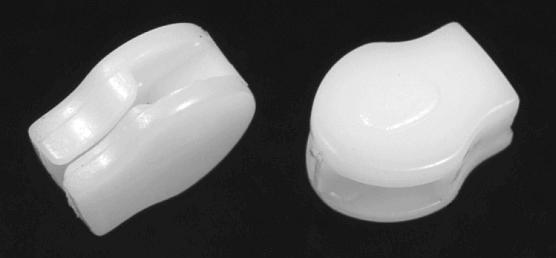

Plastic bed linen flat slider without pull tabBed linen flat sliders without pull tab, plastic made of POM: White

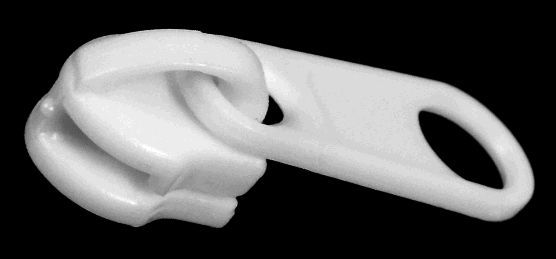

Slide No.0 nonlock long long pull tab, POM plasticNonlock with long pull tab, seawater-resistant slider made of POM plastic: Black or white Product details
Available on request:

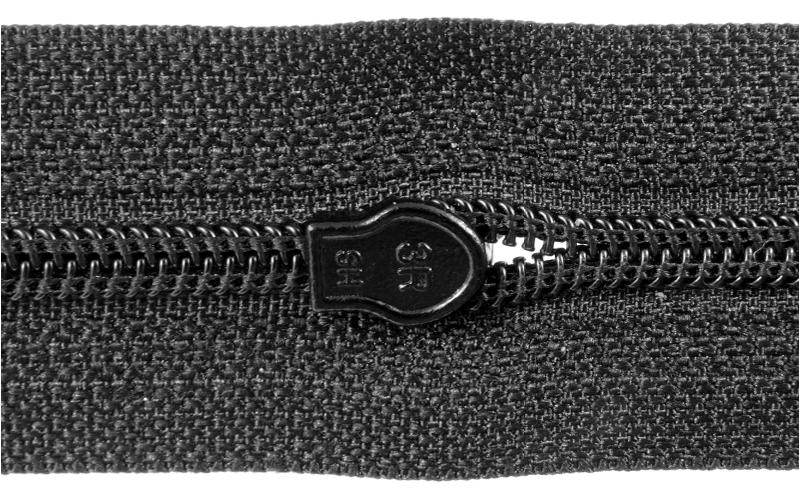

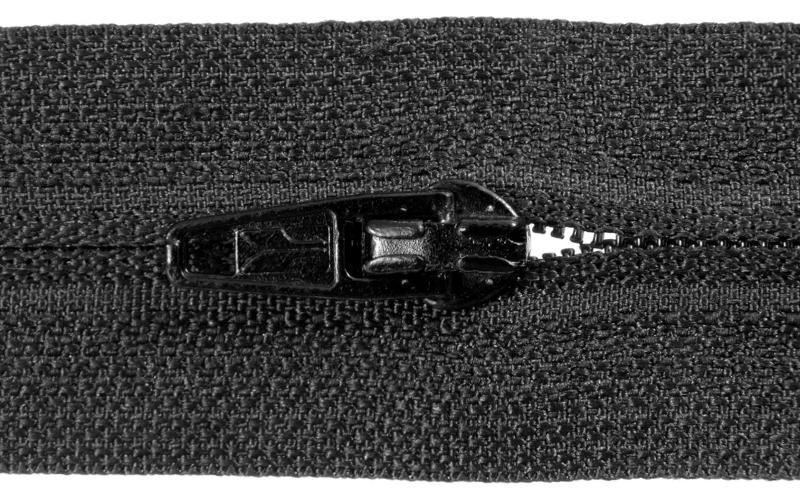

Reverse slider No.0 autolock, pull tab sideReverse slider No.0 autolock, backAutomatic reverse slider, for concealed sewn-in zippers: Black, white, nickel-plated

Top stops for spiral zippers with ca. 4 mm chain width

Especially for spiral zippers only
Zipper top stops Sp0

Sp0 Alpaca

Mounting instructions
Universally usable top stops RT0
Zipper top stops RT0, tinned

RT0 tin-plated

Zipper top stops RT0, black bronzed

RT0 black bronzed

U-stops/C-stops

Bottom stops RT0 for zippers with ca. 4 mm chain width

Aluminum, 5 prongs

Zipper bottom stops U-shape, nickel-plated

Stainless steel, 4 prongs

ca. 5 mm
chain width

Spiral zipper No.5 endless long chain

Stock colours
Bobbins á 250 m
White
Ivory
Black
Cinnamon brown
  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 5 mm
  • Single tape width ca. 14 mm

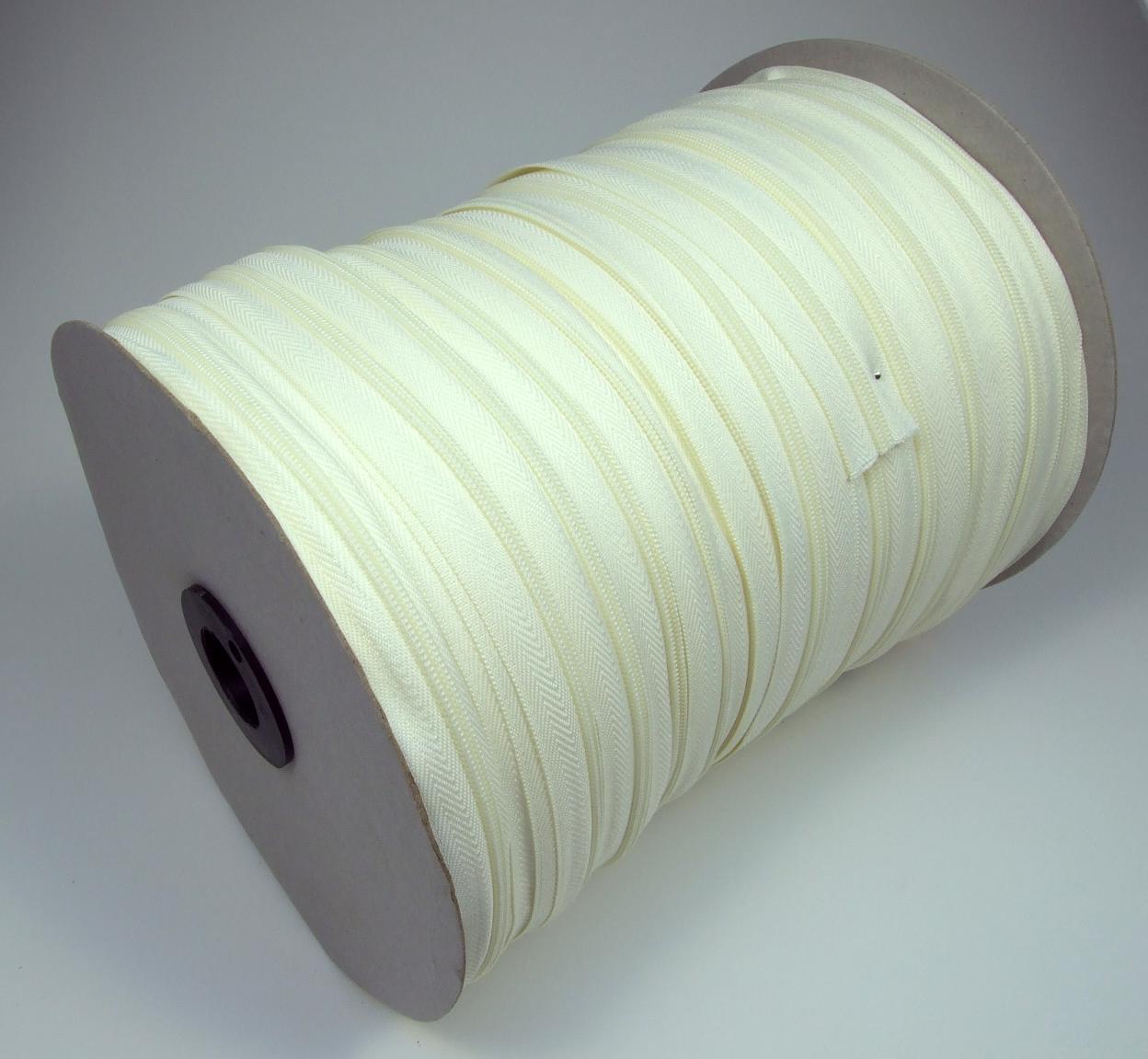

Spiral zipper long chain endless No.5 á 250 m bobbin

Slider No.5

Material: Zamac

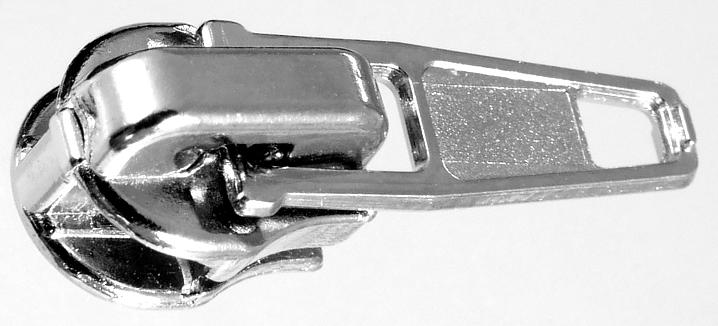

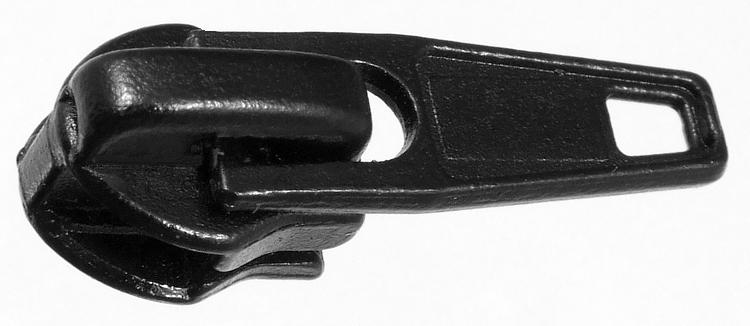

Slider No.5 autolock black slider No.5 autolock, nickelAutomatic with standard pull tab: White, black, ivory, nickel-plated
Slider No.5 nonlock long pull tabNonlock with long pull tab: Black
Available on request: Nonlock with long pull tab, made of seawater resistant POM plastic: Black or white
Ca. 6 mm
chain width

Spiral zipper No.10 endless long chain

Stock colours
Bobbins á 200 m
White
Silk white
Black
Dark brown
Medium brown
  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 6 mm
  • Chain thickness ca. 2.5 mm
  • Single tape width ca. 16 mm

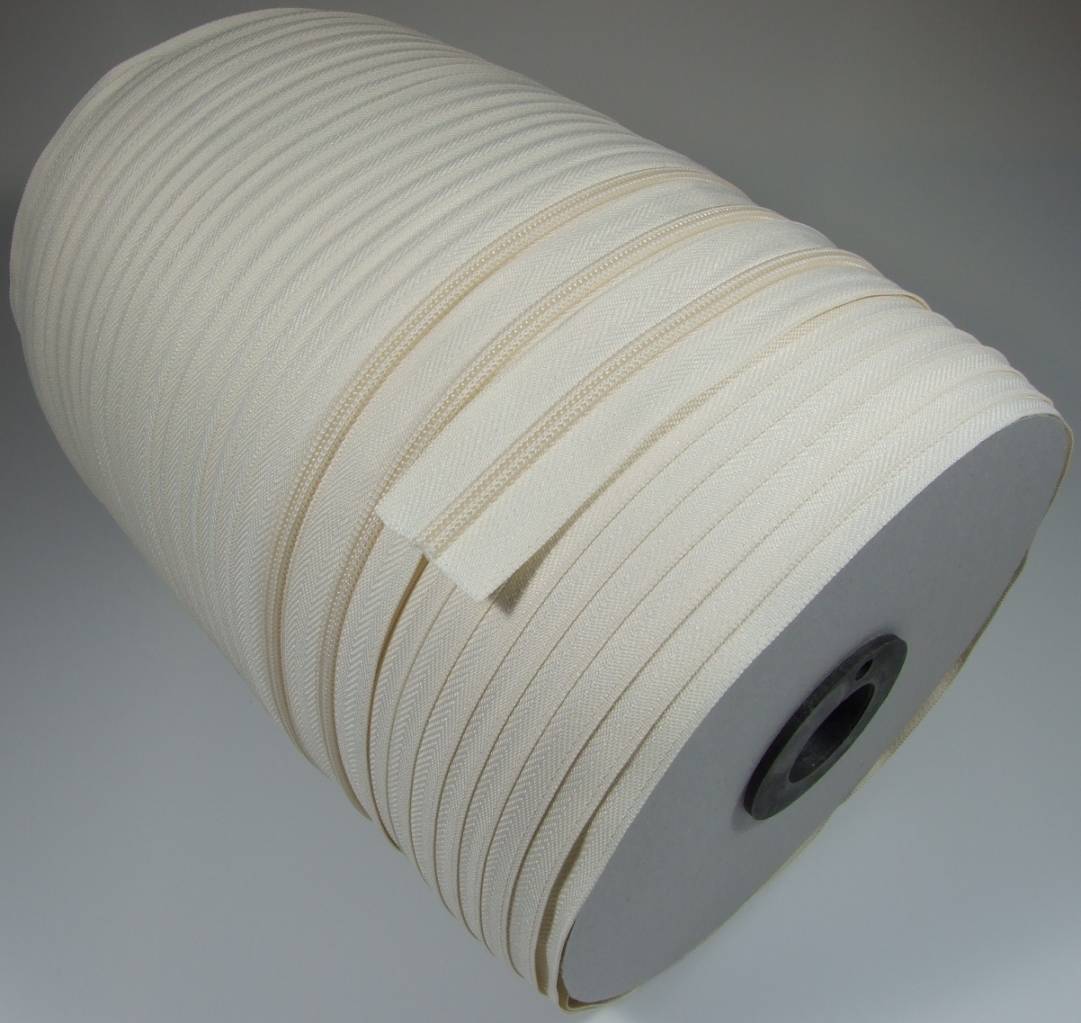

Spiral zipper long chain endless 6 mm chain width

Slider No.10

Material: Zamac

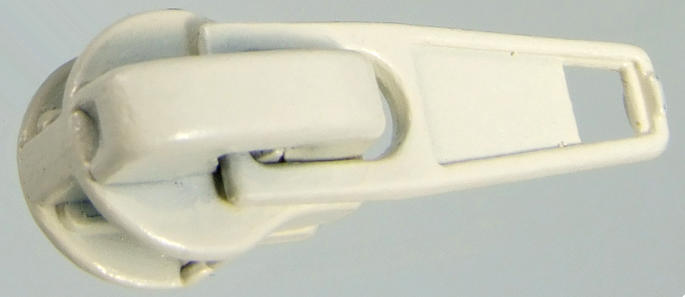

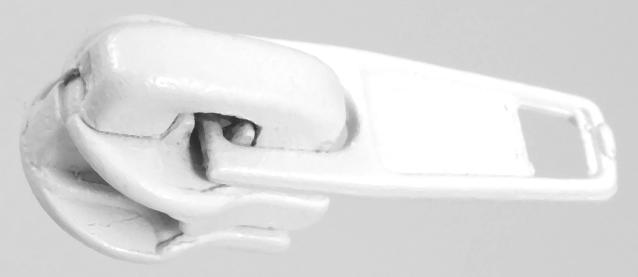

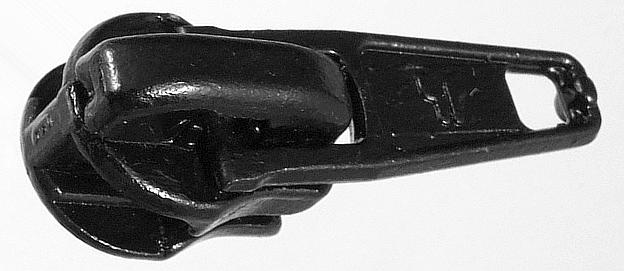

Slider No.10 autolock white Slider No.10 autolock silky white Slider No.10 autolock black Slider No.10 autolock nickel-platedAutomatic with standard pull tab: White, silky white, black, nickel-plated

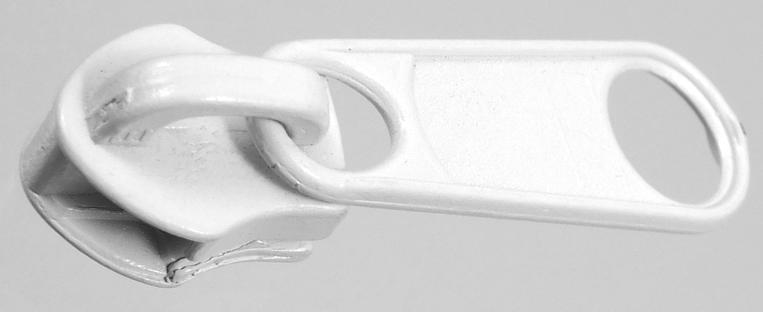

Slider No.10 nonlock long pull tab Slider No.10 nonlock long pull tab blackNonlock with long pull tab: White, black, nickel-plated
arrowright More slider, for special purposes and with decorative pull tabs found here.

Top stops for spiral zippers with ca. 6 mm chain width

Especially for spiral zippers only
Spiral zipper top stops Sp10

Sp10 aluminum

Mounting instructions
Universally usable top stops RT10
Zipper top stops RT10 antique brass

RT10 antique brass

Zipper top stops RT10 aluminum

RT10 aluminum

Zipper top stops RT10 black nickel-plated

RT10 black nickel-plated

U-stops/C-stops
Mounting­instructions
Synonyms: zipper upper parts, stopper parts, zip metal brackets, zip clip, zipper clamps

Bottom stops for spiral zippers with ca. 6 mm chain width

Universally usable bottom stops RT10
Zipper bottom stops 6 mm U-shape aluminium 5 prongs

Aluminum, 5 prongs

Aluminum, U-shape, 4 prongs, pre-punched as endless chain for processing in bottom stop pliers with magazine, but also singly manually breakable
Synonyms: U-Stops, G-Stops, C-Stops, lower boundary part, final connection, end clamp, end stop

Spiral zipper endless long chain No.10, with 28 mm tape width

Bobbins á 200 m Stock colour: Black

  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 6 mm
  • Single tape width ca. 28 mm
  • Total width of the zipper ca. 56 mm
  • Synonyms: coil zipper long chain by-the-yard, zip fastener by the meter, extra wide tape for college wallets, writing folders, conference folders

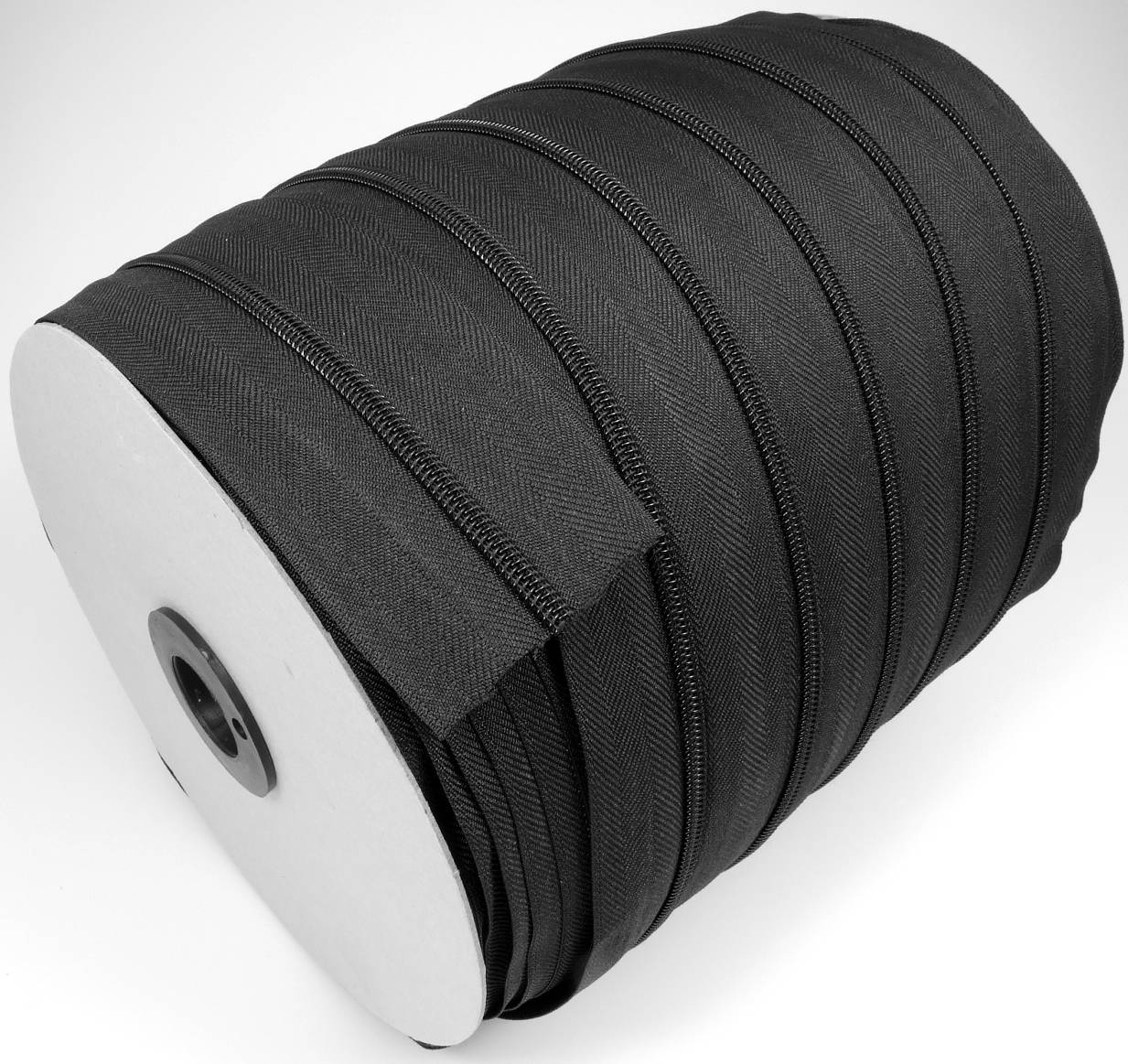

Spiral zipper long chain endless 6 mm chain width, 28 mm tape width
ca. 6.5 mm
chain width

Spiral zipper No.15 endless long chain

Bobbins á 200 m Stock colour: Black

  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 6.5 mm
  • Single tape width ca. 17.5 mm

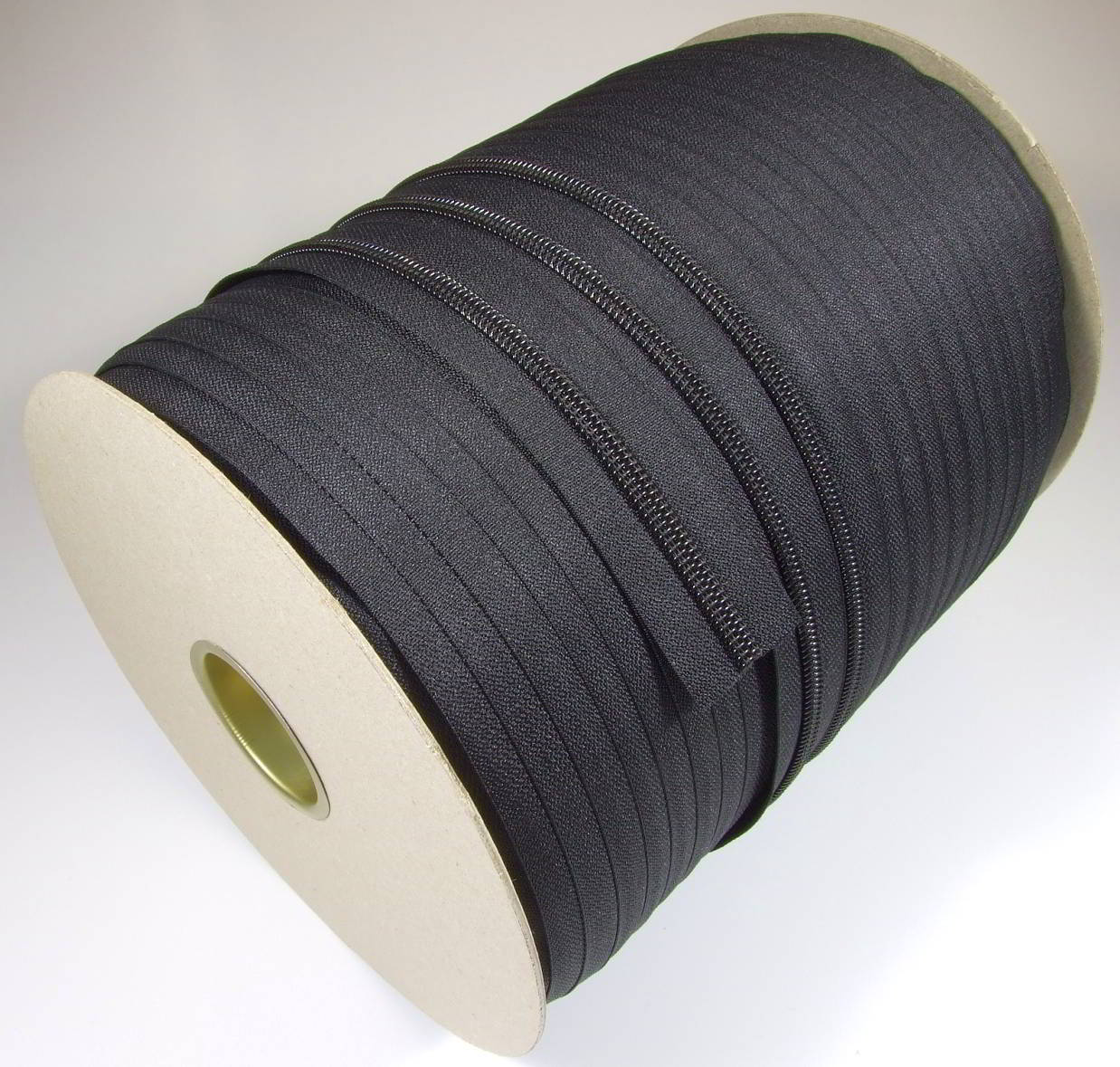

Spiral zipper long chain endless 6.5 mm á 200 m bobbin

Slider No.15

Material: Zamac

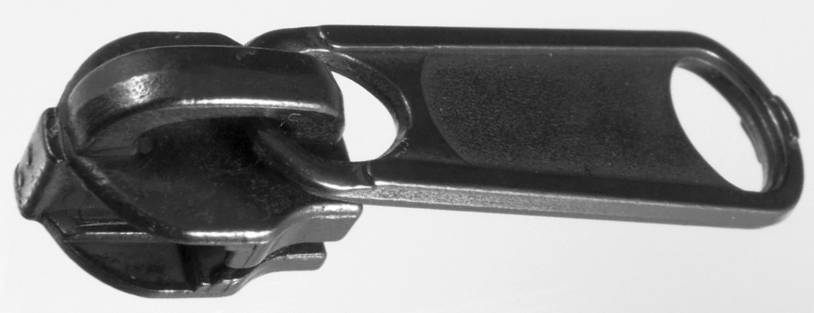

Slider No.15 nonlock long pull tabNonlock with long pull tab: Black
ca. 7.2 mm
chain width

Spiral zipper No.20 endless long chain

Bobbins of 100 m & 200 m Stock colour: Black

  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 7.2 mm
  • Single tape width ca. 18 mm

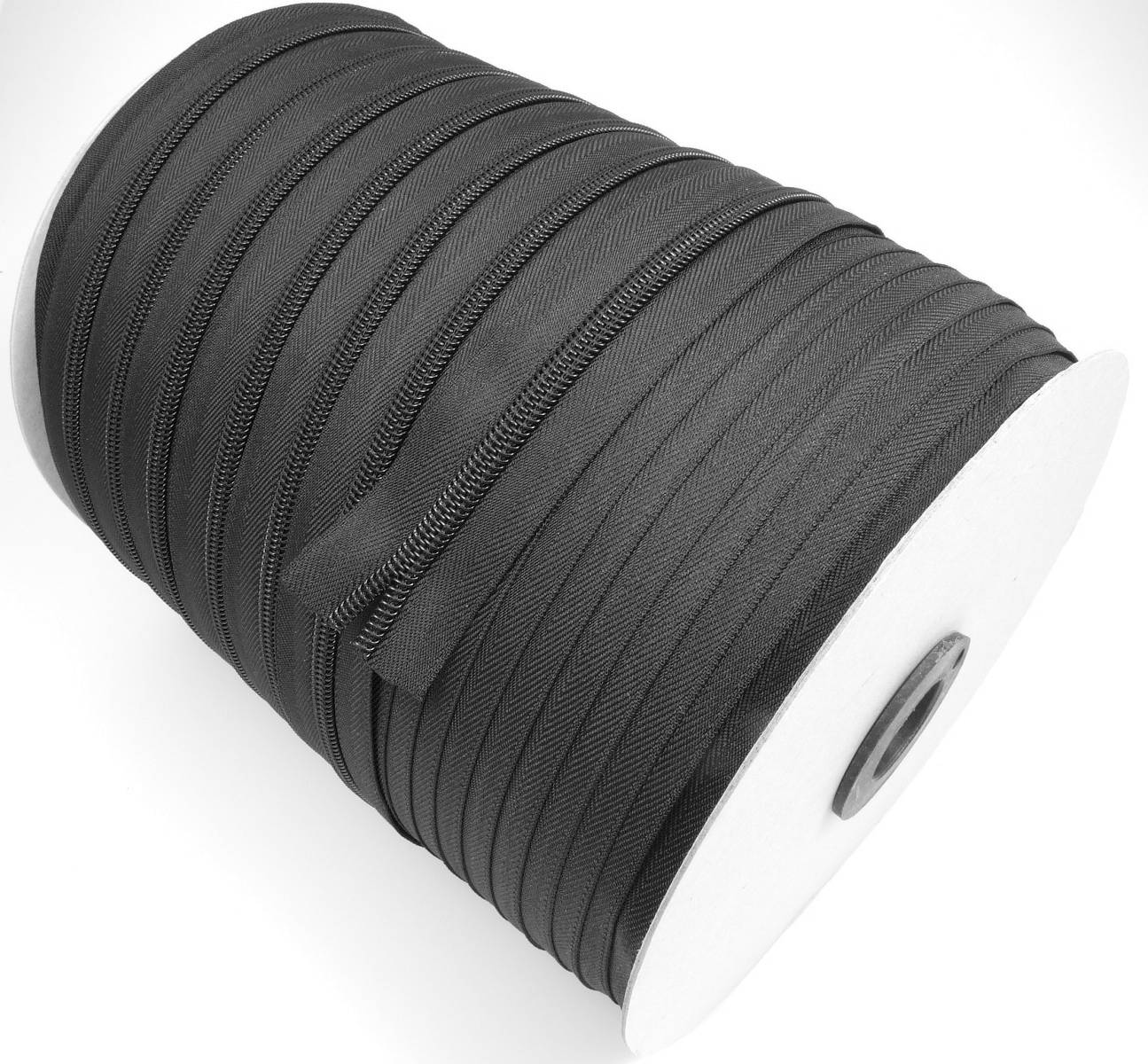

Spiral zipper long chain endless No.20 á 200 m bobbin

Slider No.20

Material: Zamac
Slider No.20 nonlock long pull tabNonlock with long pull tab: Black

Top stops for spiral zippers with ca. 8 mm chain width

Universally usable top stops RT20
Zipper top stops RT20 antique brass

RT20 antique brass

Zipper top stops RT20 nickel-plated

RT20 black nickel-plated

U-stops/C-stops

Bottom stops for spiral zippers with ca. 8 mm chain width

Universally usable bottom stops RT20
Zipper bottom stops 7-8 mm U-shape aluminium 5 prongsAluminum
ca. 10.5 mm
chain width

Spiral zipper No.25 endless long chain

Bobbins á 100 m Stock colour: Black

  • Coil/Spiral zipper – tape and coil made of polyester
  • Tape sewn on spiral
  • Chain width ca. 10.5 mm
  • Single tape width ca. 20 mm
Spiral zipper long chain endless No.25 á 100 m bobbin

Slider No.25

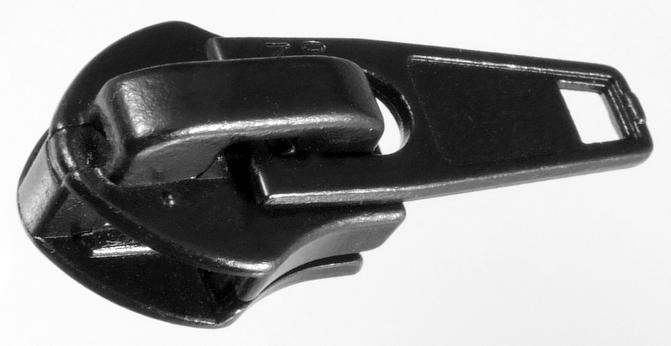

Slider No.25 autolock blackAutomatic with standard pull tab: Black
 Material: Zamac

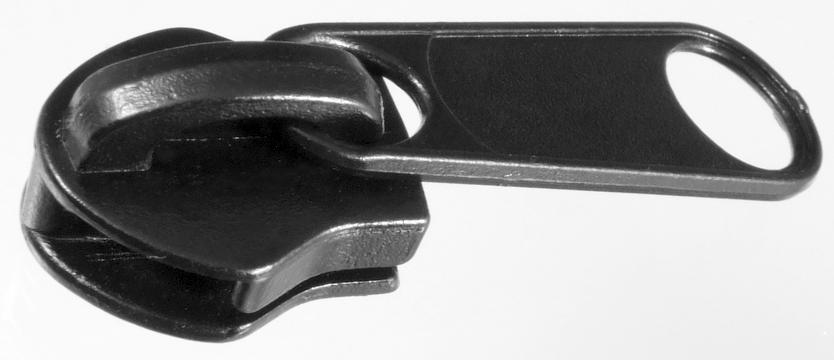

Slider No.25 nonlock long pull tab
Slider No.25 nonlock long pull tab XL, black

~7 cm XL-handle

Nonlock with ca. 5 cm or ca. 7 cm long pull tab: Black
 Material: Zamac
Slider No.25 size comparisonSize comparison of slider No.25
Slider No.25 nonlock long pull tab, glass fiber reinforced plastic Nonlock with long pull tab, made of seawater-resistant GFRP: Black or white

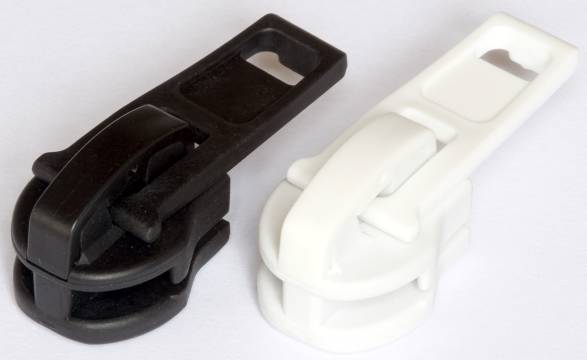

Slider No.25 autolock, POM plastic Nonlock with long pull tab, made of seawater-resistant POM: Black or white

Top stops for spiral zippers with ca. 10 mm chain width

Especially for spiral zippers only
Top stops for spiral zippers with ca. 10 mm chain width

Sp25 aluminium

Example of use
Universally usable top stops RT25
Zipper top stops RT25 black nickel-plated

RT25 black nickel-plated

U-stops/C-stops
Example of use

Bottom stops RT25 for zippers with ca. 10 mm chain width

Zipper bottom stops RT25 U-shape stainless steelU-shape, stainless steel

Zipper jig

With this tool, you can easily and quickly pull sliders on endless zipper long chain by-the-yard. The zipper jig holds zipper sliders and unlocks automatic sliders which are particularly difficult to install. You can save enormous time and increase your productivity.

Safety benefits that minimize the risk of injury:
Saxotex' zipper forks have rounded edges on the insertion slot. In 2018, we continued to improve our zipper jigs so they no longer tower over the table edge.
  • Massive silver steel (115CrV3) tool body milled
  • Screw clamp for tabletops up to 45 mm thick
  • Size 1 for sliders up to 7 mm chain width
  • Size 2 for sliders over 7 mm chain width
  • Zipper jig Duo for all zipper slider sizes
  • Made in Germany

Instructions for use & video

Synonyms: Fork Clamp Tool, Zipper aid, zipper rearing tool, zipper holder
