SR10 spiral zip fastener top stops

We offer special top stops with 3 spikes for spiral zip fasteners. These top stops are also used on ready-made spiral zip fasteners. These top stops are pressed directly onto the spiral (in fact, coil or helix). The spikes penetrate through the zip fastener tape and are pushed into the plastic spiral interstices. As a result, these top stops are fixed very firmly and hold well.

We will show you step by step below how to mount these top stops on a spiral zip fastener. Needle-nose pliers and a small flat pliers will be helpful. Two videos at the bottom of this page will demonstrate the process.

Aluminum top stop for 6 mm chain width pushed through spiral zip fastener Insert the top stop from below into the zip fastener tape. Ideally, the single spike (picture on the left) should appear between two spiral windings.
Bending aluminum top stop for spiral zip fastener with 6 mm chain width, 1 spike set in Now bend this single spike towards the spiral.
Aluminum top stop for spiral zip fastener with 6 mm chain width, 1 spike bent Press the spike as closely to the spiral as possible.
Bent aluminum top stop for spiral zip fastener with 6 mm chain width Now bend the two spikes on the opposite of the top stop towards the spiral.

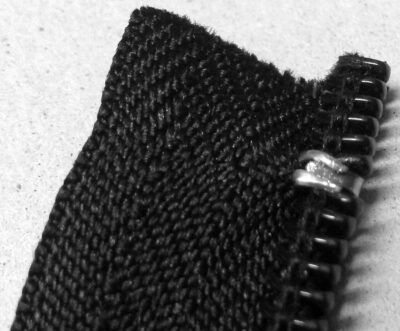

Completely installed aluminum top stop for spiral zip fastener with 6 mm chain width, view from above All three spikes of the top stop should be as close as possible and flat on the spiral to prevent sticking on the raised spikes during further use of the zip fastener. It also looks nicer when the flat-pressed top stops hide in the slider when it is slid up to the very top to close the zip fastener completely.
Completely installed aluminum top stop for spiral zip fastener with 6 mm chain width, bottom view The smooth side of the completely pressed top stop appears on the bottom side of the zip fastener spiral.

The pictures below show completely installed top stops on a No. 25 spiral zip fastener with 10.5 mm chain width. The first image shows their top, the second image shows their bottom and the third image shows the slider covering the top stops when the zip fastener is closed completely.

Top stops on a spiral zip fastener with 10 mm chain width The bottom side of top stops on a spiral zip fastener with 10 mm chain width Top stops hidden in the slider – spiral zip fastener with 10 mm chain width
Please rate this article
[Total: 1 Average: 5]

Privacy notice: The following video opens in our channel on the YouTube website.

The video shows how to mount Sp25 top stops to No.25 spiral zip fastener with a chain width of about 10 mm using needle-nosed pliers and small flat pliers. Start image for video How to attach top stops with 3 prongs to the spiral zipper

Privacy notice: The following video opens in our channel on the YouTube website.

The video below shows how to shorten a No.10 spiral zip fastener with a chain width of about 6 mm and attach Sp10 top stops using professional tools.
Start image for video How to shorten a spiral zipper No.10 with a chain width of about 6 mm and attach new top stops Sp10 using professional tools.
