You will need the following tools:
  • Pressing jaws for x-shaped bottom stopsPress jaws for pressing x-shaped bottom stops
  • Multi Purpose PliersMulti purpose pliers that operate the press jaws

Basic

Mount x-shaped bottom stop to zipper using MPP

X-shaped bottom stops are preferably suitable for zippers with teeth made of metall or Delrin plastic injection molding.

Workflow

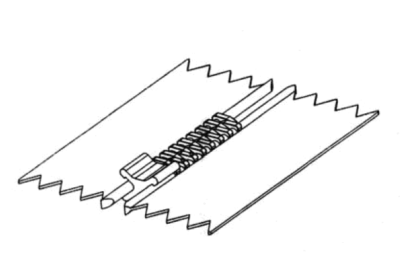

Mount x-shaped bottom stop on zipper using MPP: 1st step

1. Slide the bottom stop onto the two beads on the inside of the zipper tapes.

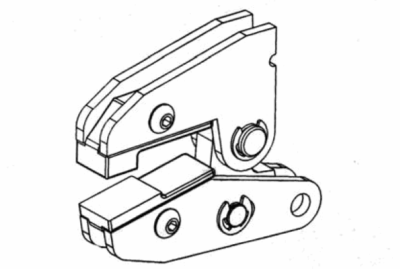

Mount x-shaped bottom stop on zipper using MPP: 2nd step (use smooth press jaws)

2.Use the pair of press jaws with the smooth surface.

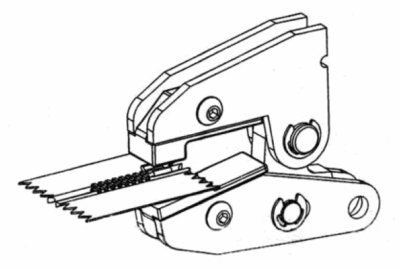

Mount x-shaped bottom stop on zipper using MPP: 3rd step

Insert the zipper with the bottom stop between the press jaws.

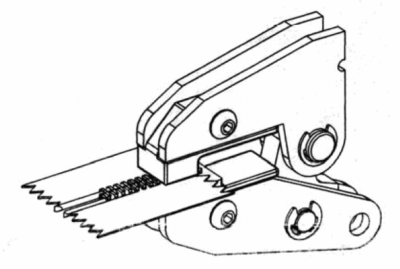

Mount x-shaped bottom stop to zipper using MPP: 4th step

4. Press the press jaws on the bottom stop completely and vigorously together.
